The LT HQ600-S-8P is a CNC busbar punching and shearing machine with 600 kN of force and a single-row die library of 8 punching dies plus 1 shearing die. It handles plate up to 6000 x 200 x 15 mm with punching diameters from 4.3 to 55 mm across 6 control axes. Punching and shearing run at 40 m/min, with X-axis positioning up to 75 m/min.
LT HQ600-S-8P CNC busbar punching machine is a high-performance CNC busbar processing machine that integratespunching and shearing. TheHQ600-S-8P CNC busbar punching and shearing machine adopts a straight column mold framewith 8 punching,1 shearing to ensure the concentricity of the upper and lower dies during long-term use during processing. It isalso equipped with CNC control system and CAD/CAM system.

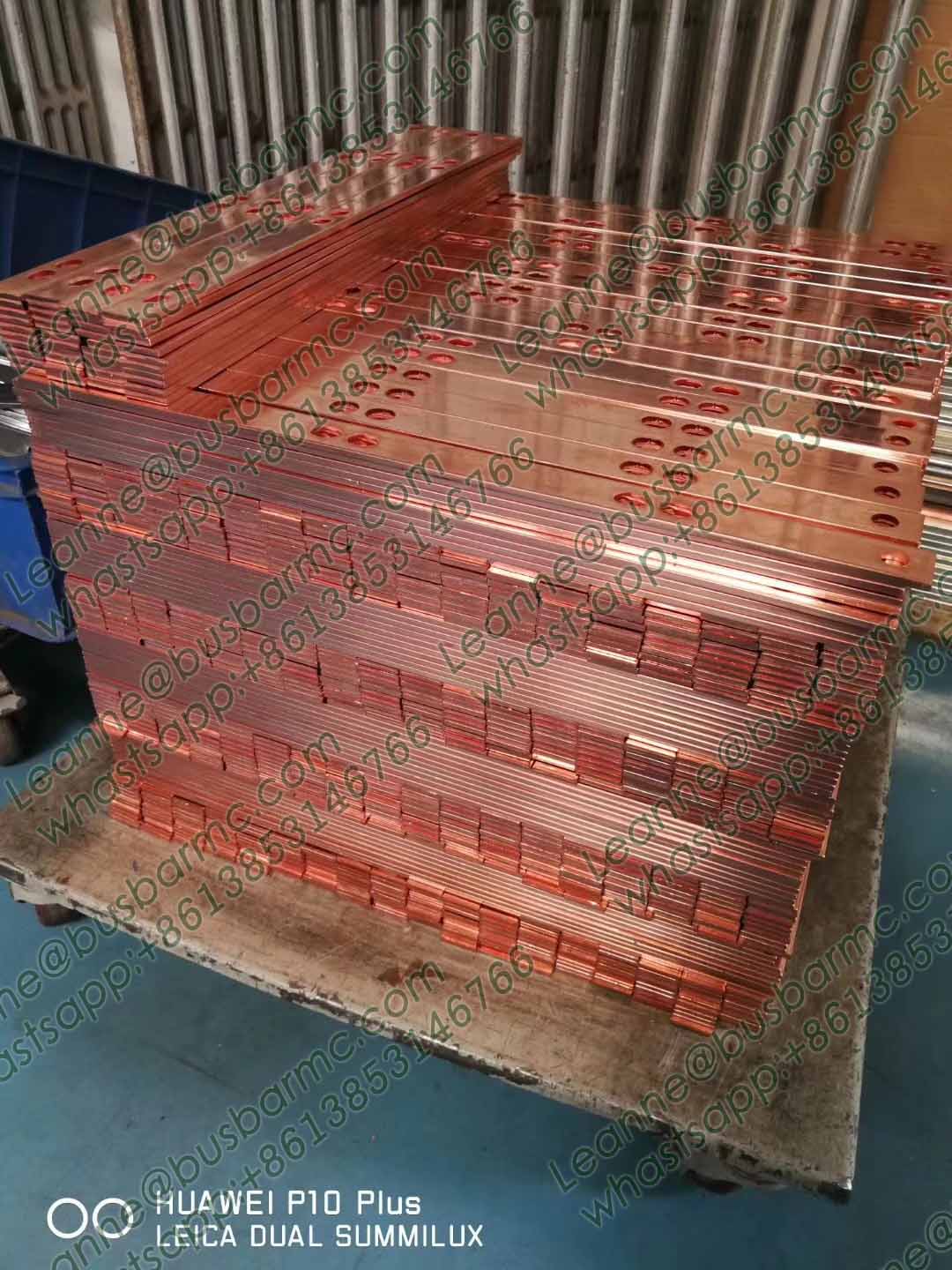

Punching capacity — On 6000 x 200 x 15 mm copper plate, the hydraulic station driven by a Swiss ABB motor supplies 600 kN to the in-line die library, giving a punching range of 4.3 to 55 mm with 8 punching dies and 1 shearing die in one row. That is 56 percent more usable section than the 12 x 160 mm of the HQ400-S series, and a 20 mm larger maximum punching diameter than the 35 mm of the HQ600-SP series.
Positioning accuracy — The 6-axis servo system drives 6 servo motors and 6 servo drives; X-axis and Y-axis accuracy error is 0.10 mm per 500 mm. X-axis travel is 2000 mm, Y-axis travel 960 mm and Z-axis travel 310 mm, with an effective X1 servo-clamp stroke of 110 mm and X2 servo-clamp stroke of 2000 mm.
Throughput — The feed moves at up to 75 m/min while punching and shearing continues at 40 m/min, and reaches 150 m/min under no-load conditions - roughly 1.9 times the working rate - so repositioning time between hits is shortened by lengthening the discharge stroke rather than the feed stroke.
Station size and footprint — The feeding station measures 3000 x 500 mm and the discharge station 2500 x 500 mm. The machine measures 10500 x 2750 x 1800 mm and weighs 6700 kg, and the straight-column mould frame keeps the upper and lower dies concentric over long-term use.

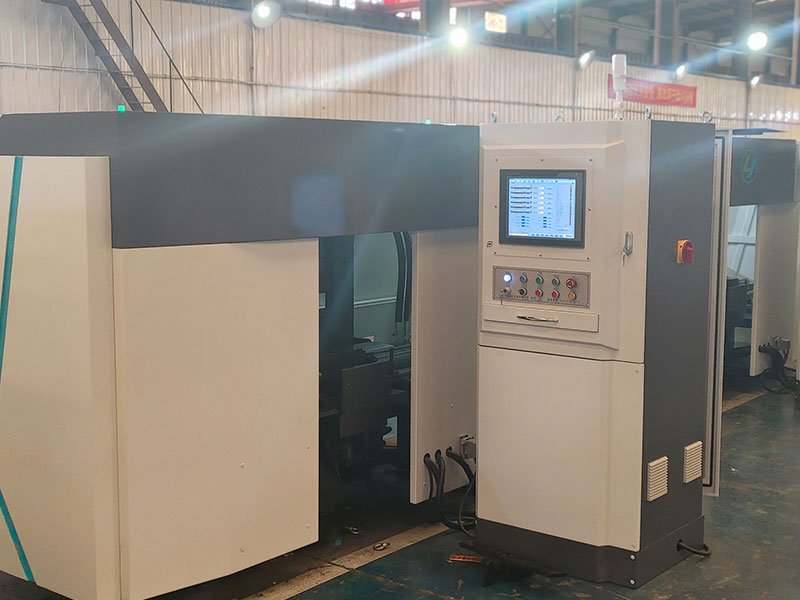

HQ600-S-8P CNC busbar punching machine
LT HQ600-S-8P CNC busbar punching machine is a high-performance CNC busbar processing machine that integrates punching and shearing. The HQ600-S-8P CNC busbar punching and shearing machine adopts a straight column mold frame with 8 punching,1 shearing to ensure the concentricity of the upper and lower dies during long-term use during processing. It is also equipped with CNC control system and CAD/CAM system, which greatly improves the production efficiency of busbar punching and shearing. Get the latest busbar punching and shearing machine prices, contact us now.
LT Busbar Machine Videos:
Infomation:
HQ600-S-8P CNC Copper busbar punching machine Specifications
| Model | HQ600-S-8P |
| Maximum Force | 600KN |
| Feeding Station Size | 3000x500mm |
| Discharge Station Size | 2500x500mm |
| Maximum Plate Size | 6000x200x15mm |
| Maximum Processing Thickness | 15mm |
| Maximum Processing Width | 200mm |
| Maximum Punching Diameter | Ø4.3-Ø55mm |
| Maximum Number of Cutting Dies | 1 |
| Maximum Number of Punching Dies | 8 |
| Max.Number of Embossing Mold | 0 |
| X-Axis Maximum Travel | 2000mm |
| X-Axis Accuracy Error | 0.10/500mm |
| Y-Axis Maximum Travel | 960mm |
| Y-Axis Accuracy Error | 0.10/500mm |
| Z-Axis Maximum Travel | 310mm |
| X-Axis Maximum Positioning Speed | 75m/min |
| Striking Cylinder Stroke | 45mm |
| Number of Control Axes | 6 |
| Dimensions (LxWxH) | 10500x2750x1800mm |
| Weight | 6700kg |
Feature:

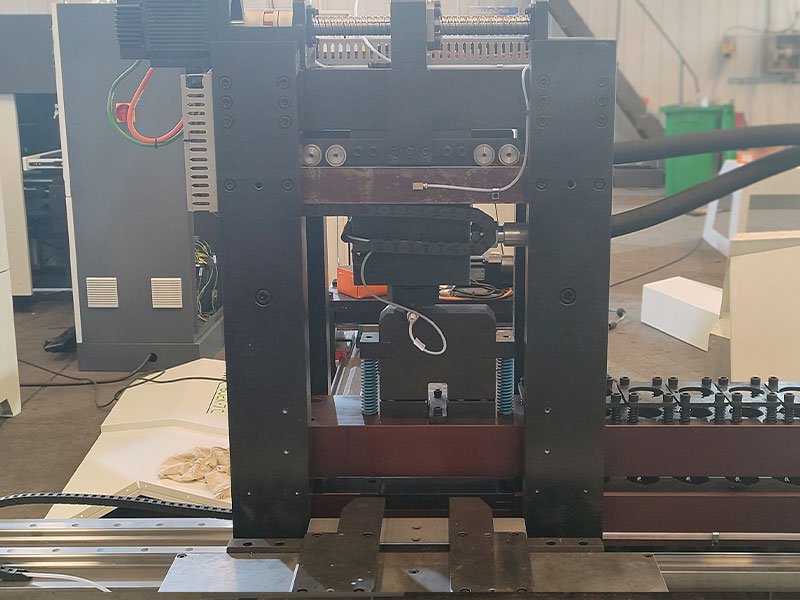

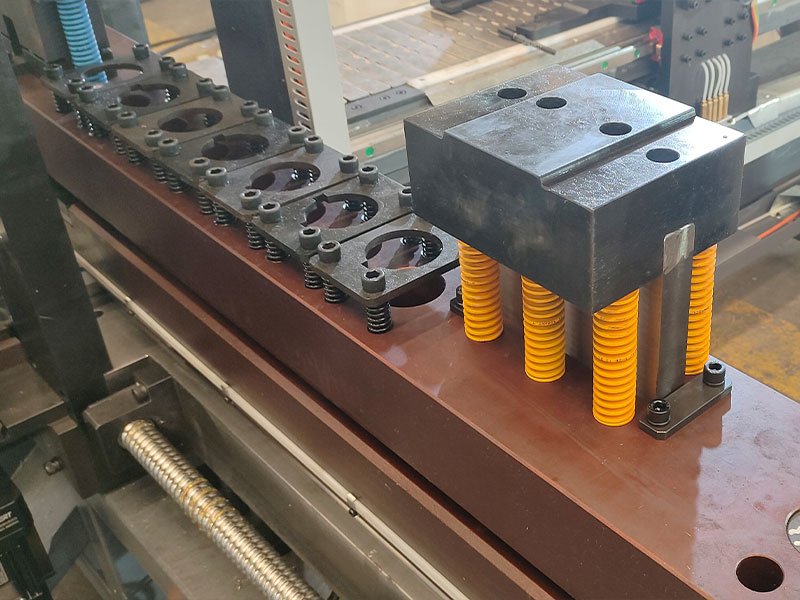

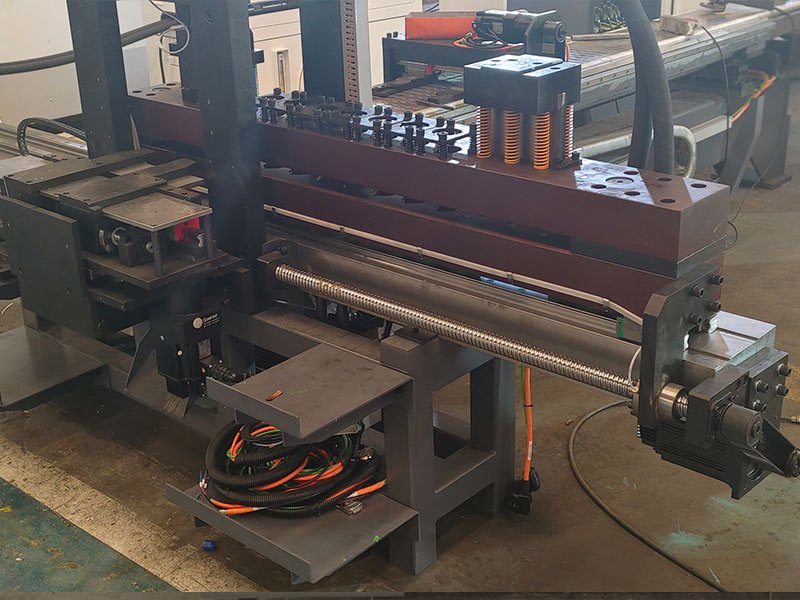

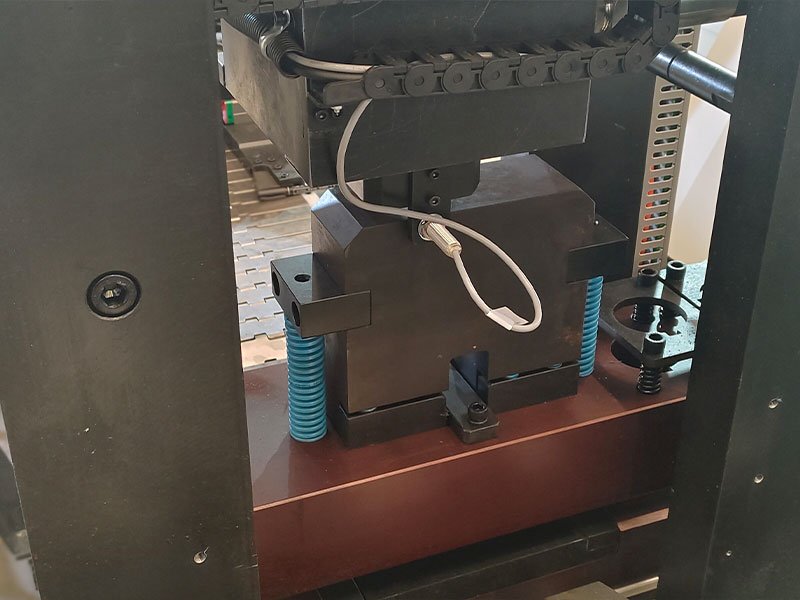

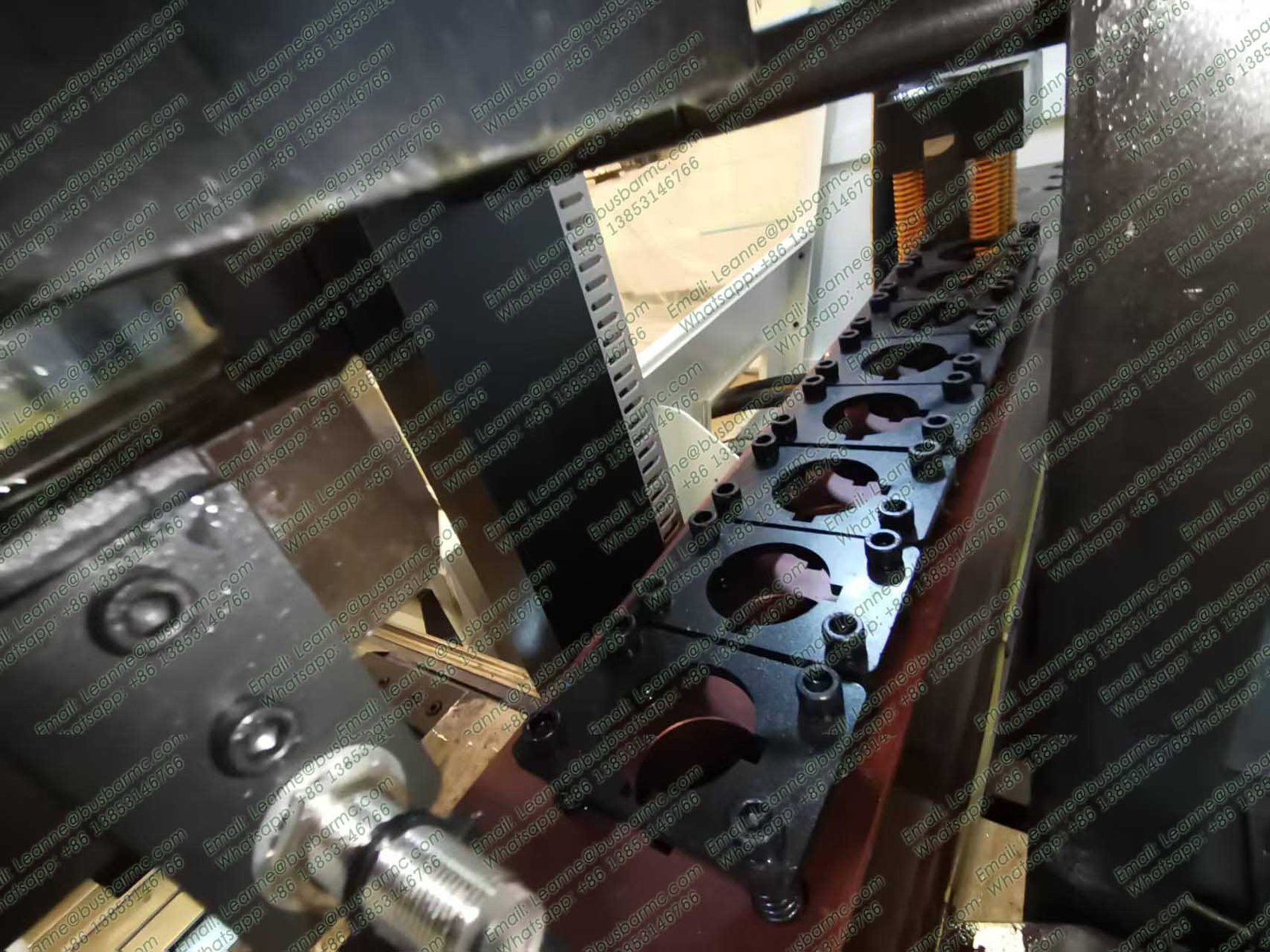

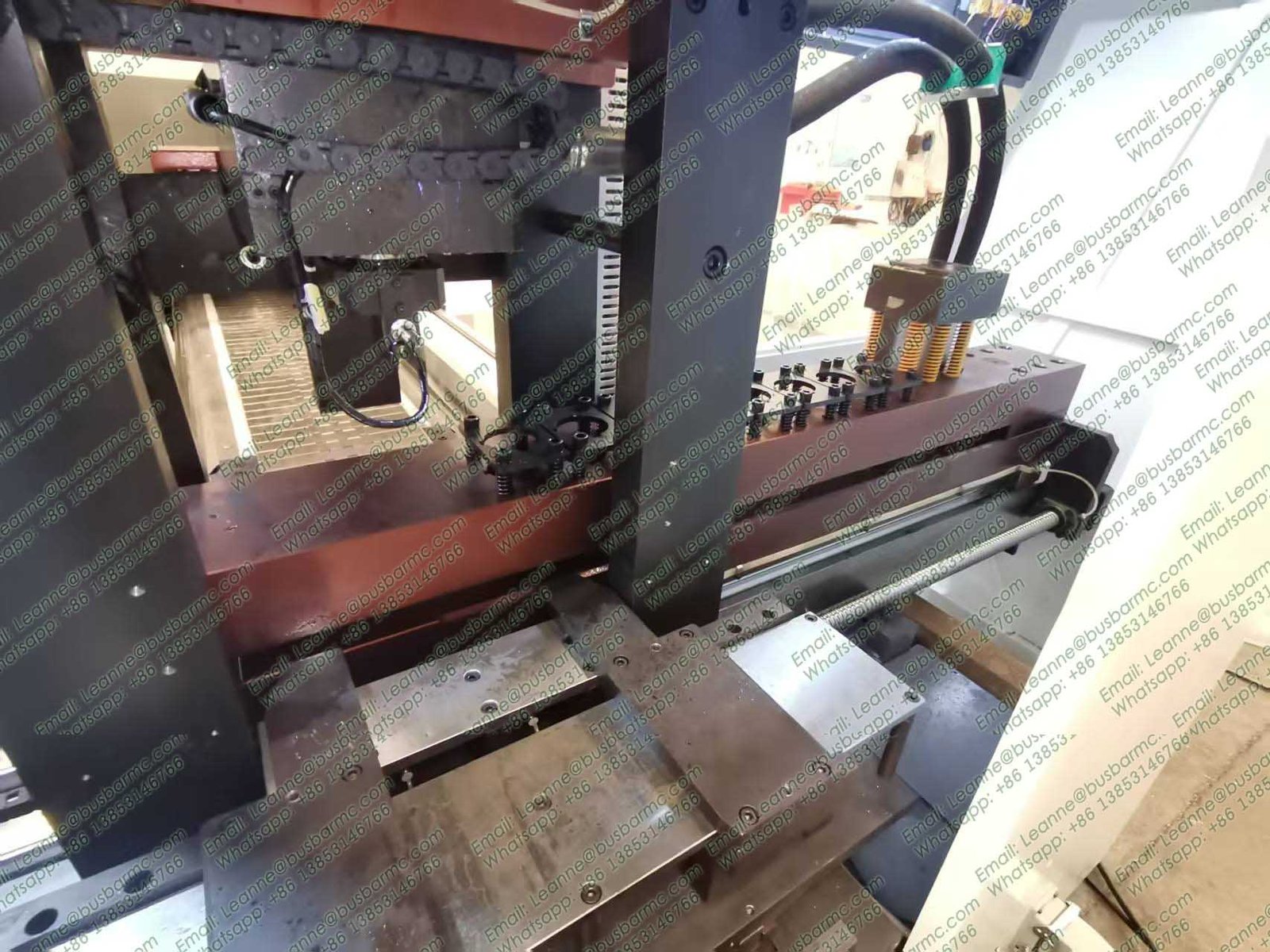

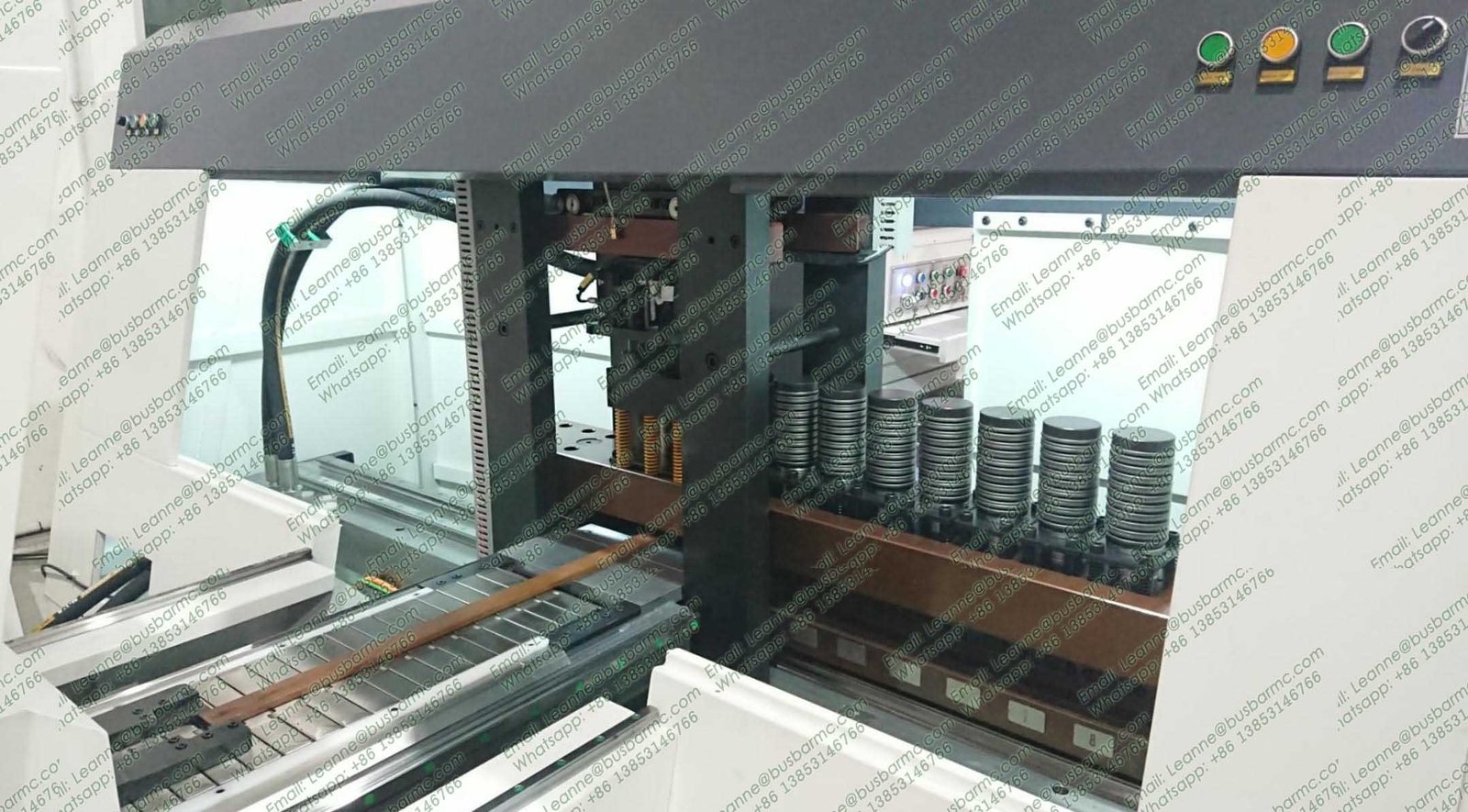

Straight column single row die library, consisting of 8 punching mold + 1 shearing mold .
Single-row die library design, with 8 punching mold + 1 shearing mold in the same row to ensure the concentricity of the punching and shearing work. While ensuring the punching and shearing efficiency (40m/min), the precision control can reach 0.1mm/500mm.
servo system is used to achieve 6-axis control, and the X-axis punching and shearing efficiency is Max 75m/min

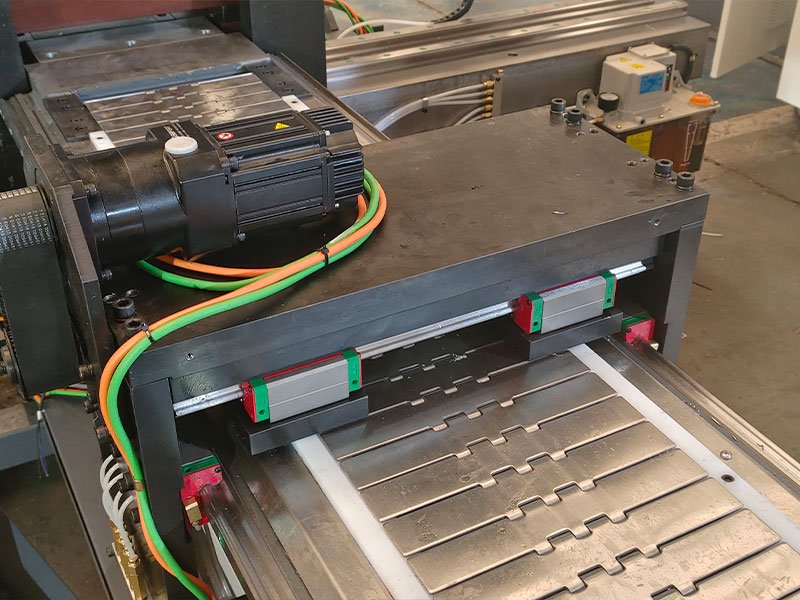

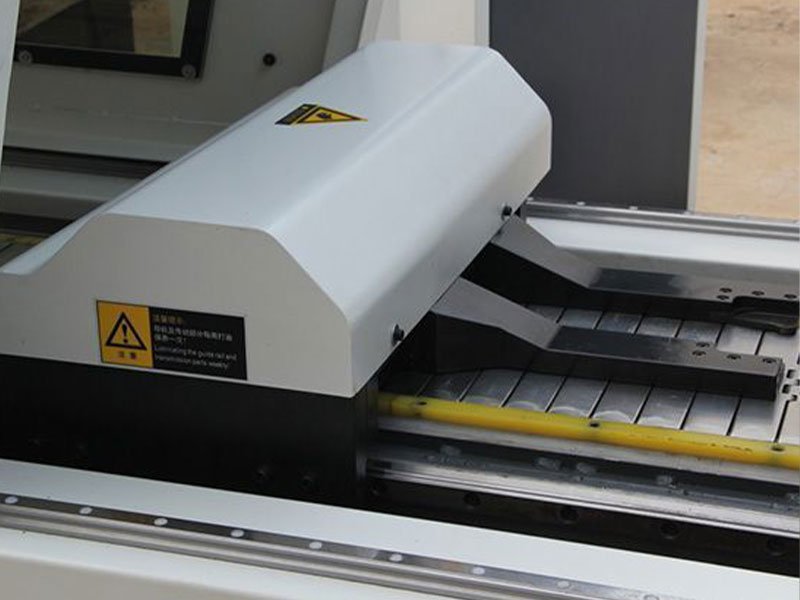

6-axis motion system adopts 6 servo servers and 6 servo motors to drive control, with high control accuracy. Among them, the effective stroke
of the X1 servo clamp is 110mm, and the effective stroke of the X2 servo clamp is 2000mm. The X-axis motion efficiency is improved by
shortening the feed stroke and lengthening the discharge stroke. Max 75m/min (150m/min under no-load condition) in the punching
and shearing working state.

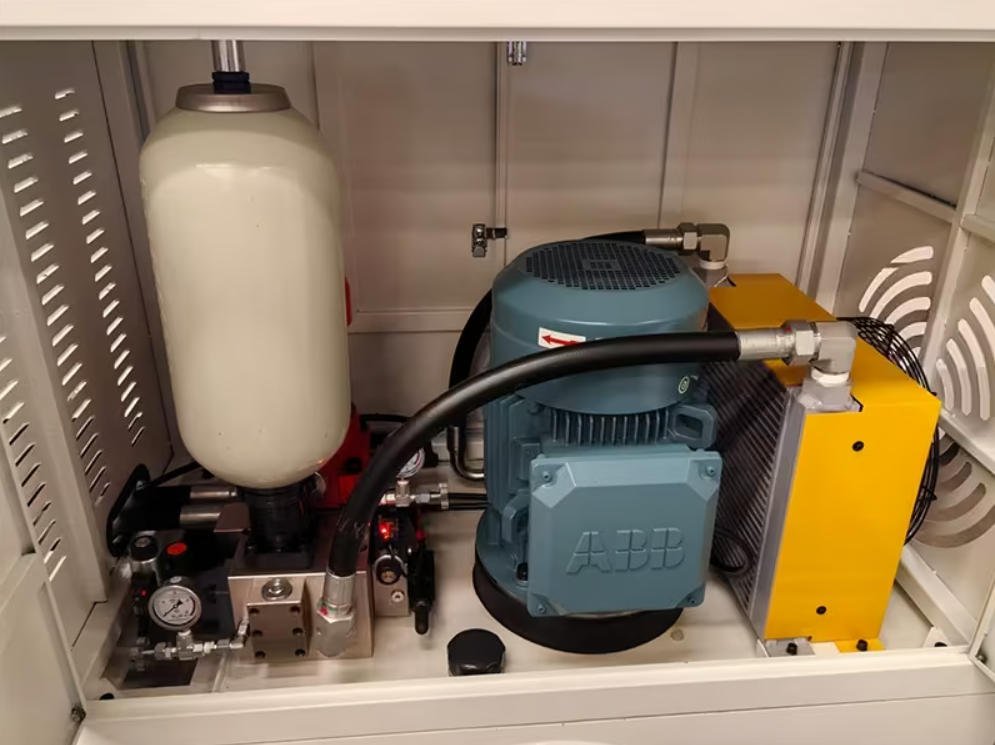

Equipped With A Swiss ABB Motor, It Supplies 600KN Hydraulic Pressure.The hydraulic station uses
Swiss ABB motor to provide 600KN hydraulic pressure, all of which is supplied to the punching and shearing unit,
effectively ensuring sufficient hydraulic pressure and punching and shearing work stability.

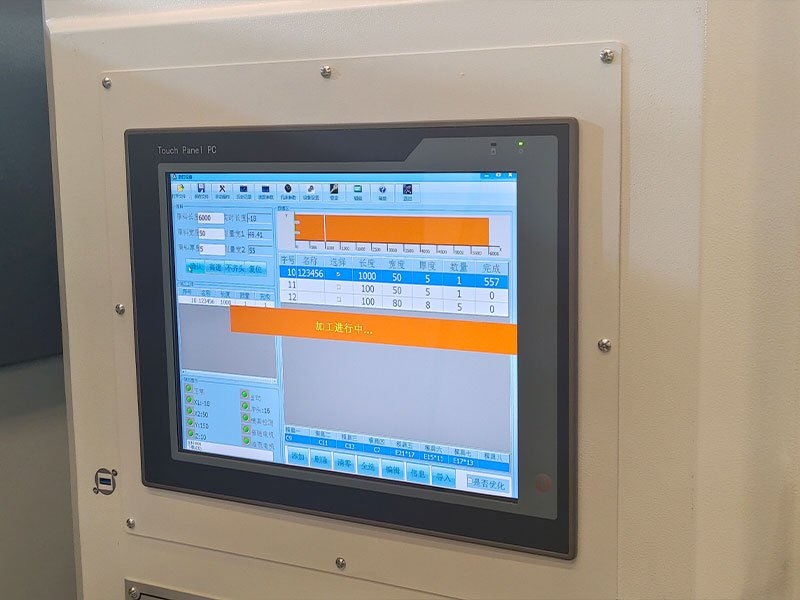

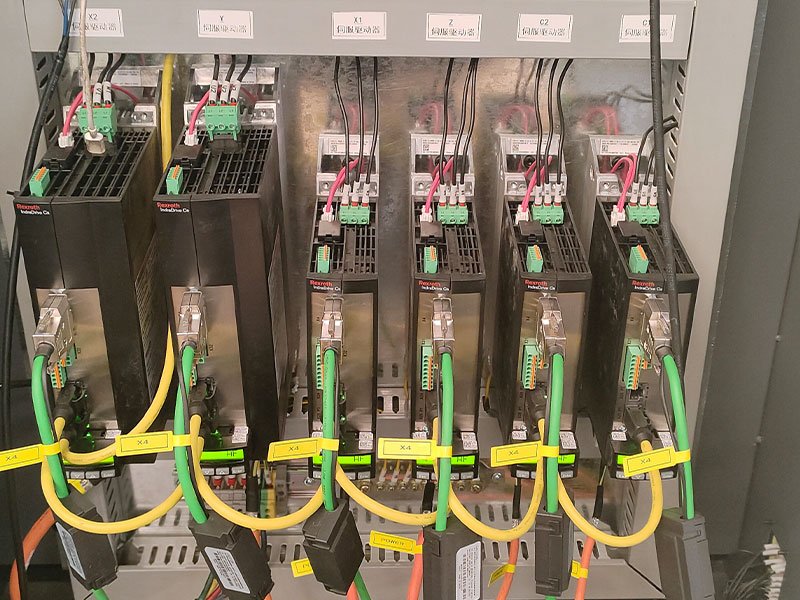

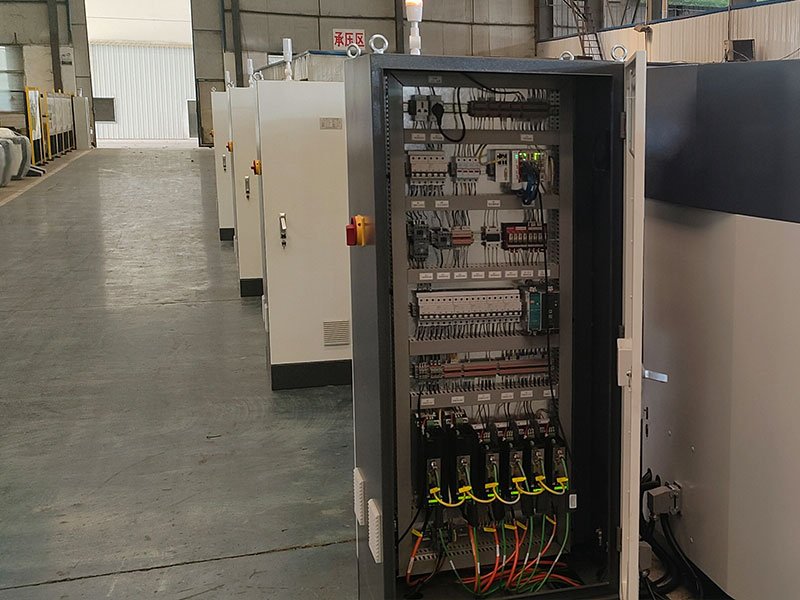

German Beckhoff System, German Rexroth Servo Motor And Servo Server.
German Beckhoff control system has closed-loop control, which has the advantages of high control accuracy,
strong anti-interference ability and flexible self-adaptation.
(Siemens control system has poor precision control, adopts open-loop control,
and is prone to data loss.) The equipment uses internationally renowned brand
accessories (German Rexroth), which are more stable than Chinese self-developed
brands and have lower maintenance costs.
